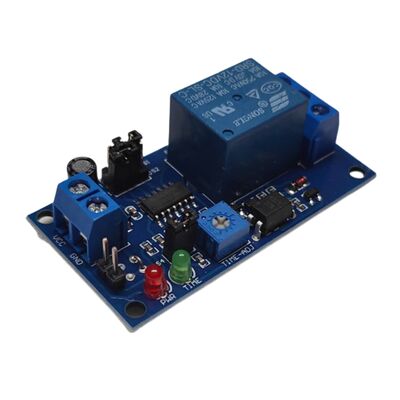

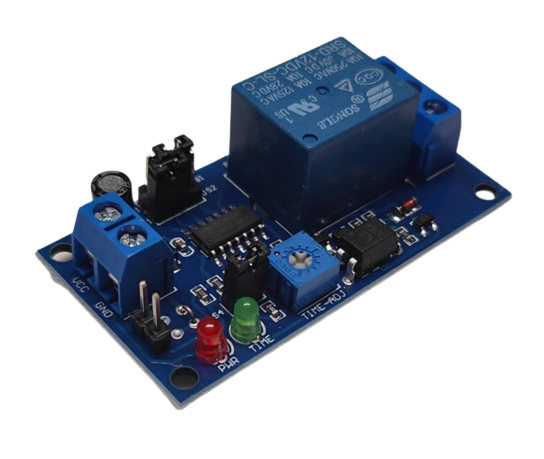

Advanced Timing Module:
Our timing module comes equipped with an impressive array of features tailored to ensure optimal performance, superior protection, and flexible usability. It's a module designed with an eye towards both efficiency and adaptability, making it a perfect fit for a variety of applications.

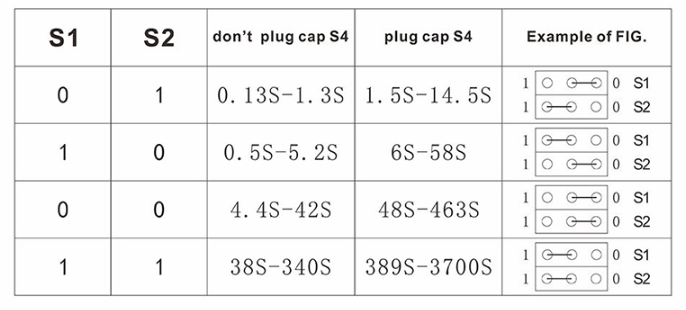

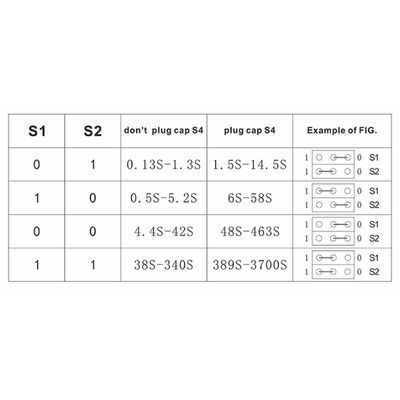

Time Range Flexibility:
At the heart of its impressive features is the ability to select from eight different time ranges, providing unmatched flexibility for a myriad of tasks. These range from a rapid 0.1 second to a more extended span of up to 1 hour, ensuring that you can fine-tune the module to suit the specific needs of your project.
Robust Protection:
Our timing module is fitted with a power reversal protection diode. This vital component enhances the overall safety of the module by preventing damage due to power supply reversals. This robust protective measure ensures that the module's performance remains unimpeded, extending the lifespan of the module and providing peace of mind during operation.
High Current Load Capacity:
The module is designed to handle high current loads with ease. It can accommodate a load of up to 10A, whether the source is 250V AC or 30V DC. This high load capacity broadens the scope of potential applications, making the module an ideal choice for a variety of demanding tasks.
Delay Adjustment:

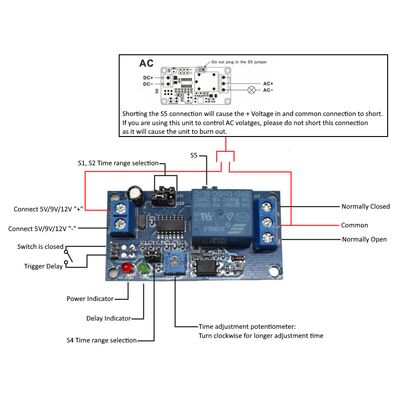

To further enhance the module's flexibility, it features a delay adjustment potentiometer. By simply turning the potentiometer clockwise, the delay time can be extended. This easy adjustability allows users to customize the module's performance to their exact specifications.
Input Voltage:
The module is designed to operate optimally with an input voltage of 12V. This makes it compatible with a wide range of power supply options, making it a versatile choice for many different environments and applications.
Energy Efficiency:
The quiescent, or idle, power consumption of our timing module stands at a mere 5.5mA. This low power consumption during idle times makes the module an energy-efficient choice, helping to reduce overall energy usage and potentially cut costs over time.
Maximum Power Consumption:
Even at its most active, the module's maximum power consumption remains impressively low at 42mA. This efficient power usage ensures that the module can perform its tasks effectively without consuming excessive amounts of energy, making it a practical and environmentally-friendly choice for any project.
In summary, this timing module, with its flexible time ranges, robust protection features, high current load capacity, and energy-efficient design, is a versatile and reliable choice for many timing-related applications.
