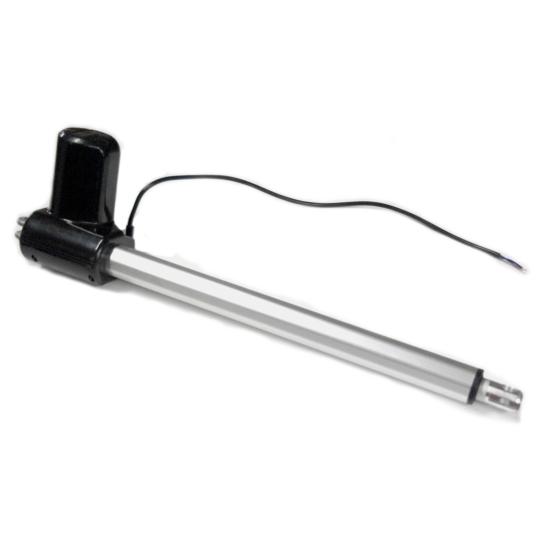

Linear Actuator 8mm/sec 400mm Stroke 3500N
Retracted length: 590mm
Max Current: 6A
Load capacity: 3500N at rated load (This is the rating for the push strength, the pull strength will be LOWER)
Limit Switches: Internal (Not adjustable)
Protection Class: IP65
Duty Cycle: 10% (2 minutes on/18 Minutes off)
Cable Length: 50CM
Piston end mounting hole : 12mm
Motor end mounting hole : 10mm
Note: These actuators have a +/- 10% Tolerance.
High quality unit. Very smooth operation. Alloy frame and shaft.
One of the strongest and most durable on the Australian Market.
Uses Include: Furniture, Appliances, Automotive, Satellite, Solar etc
Reverse the polarity to make it retract.
