MY1016Z Unite Motor 250W 24V

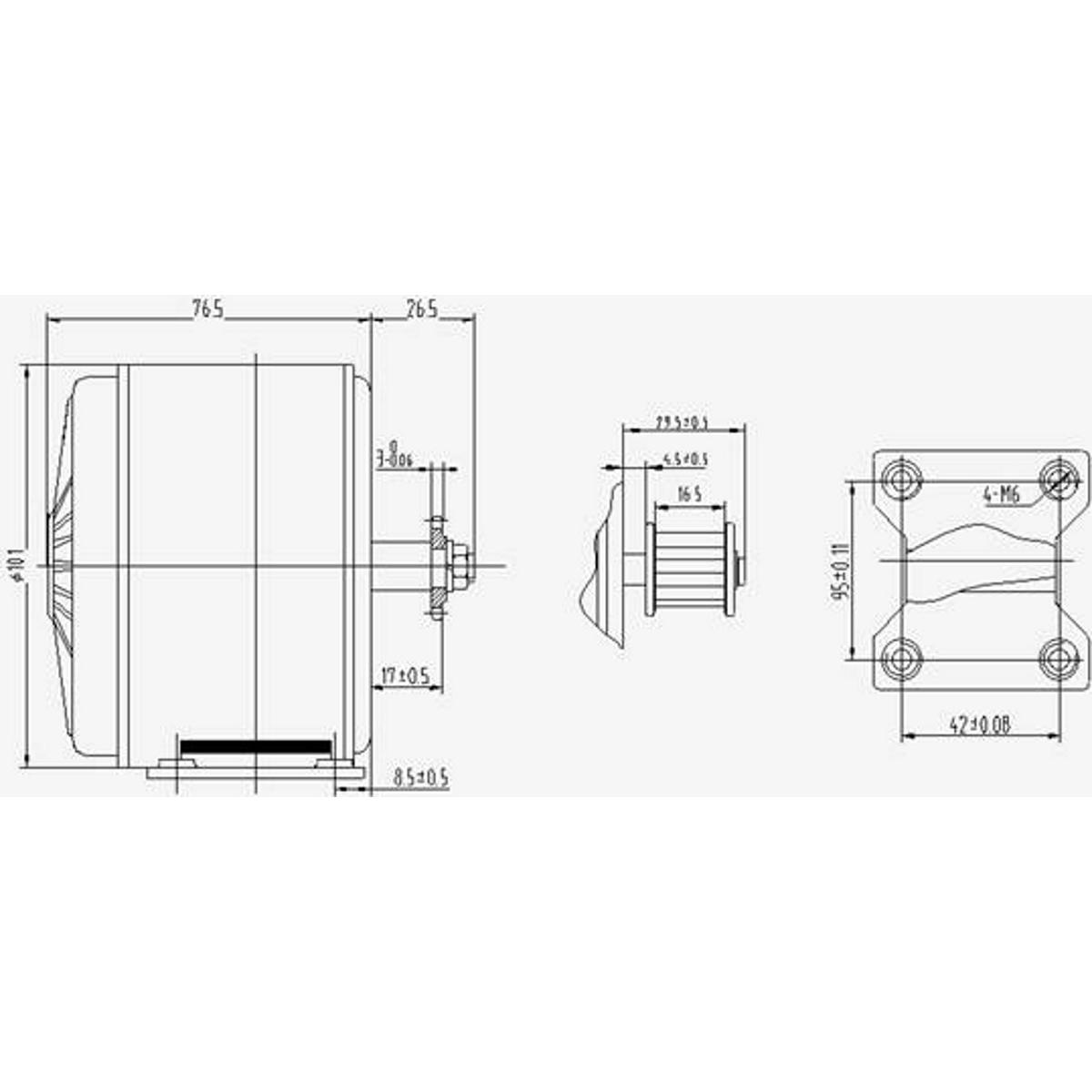

MY1016Z Unite Motor 250W 24V United MY1016 250W 24V DC Motor With 11 Tooth Chain Sprocket motor back plate motor dimensions

United MY1016 250W 24V DC Motor With 11 Tooth Chain Sprocket

$67.90 (Includes GST)
Weight: 2.400 kg
DAYS10120
In stock
+
United MY1016Z 24V 250W Straight DC motor (Chain Drive)

24 volt 250W output,electric scooter and bike motor

Comes with an 11-tooth, #25 chain sprocket as well as a 4-bolt mounting bracket (threaded M6) on the base.

This motor is capable of rotation in either the clockwise or counter clockwise direction by just reversing the battery polarity to the motor and can be speed controlled.
If you want to speed control these, please take a look at our available speed controllers
Model MY1016 motor by Unite Motor Co., Ltd.



Model

MY 1016

Standard

200W 24V/36V

250W 24V/36V

300W 24V/36V

350W 24V/36V

No-load currency/A

≤1.5/1.0

≤1.6/1.2

≤1.8/1.4

≤2.0/1.4

No-load rate speed /rpm

3300

3350

3400

3450

Rating Torque/N·m

0.70

0.90

1.04

1.22

Rating speed /rpm

2700

2750

2750

2750

Rating currency/A

≤10.6/7.1

≤13.4/8.9

≤16.0/10.7

≤18.7/12.5

Efficiency/%

≥76

≥78

≥78

≥78

Use

Electric Scooter / Small Scooter

 This chart shows the available models, though we may not be able to source all of them.
