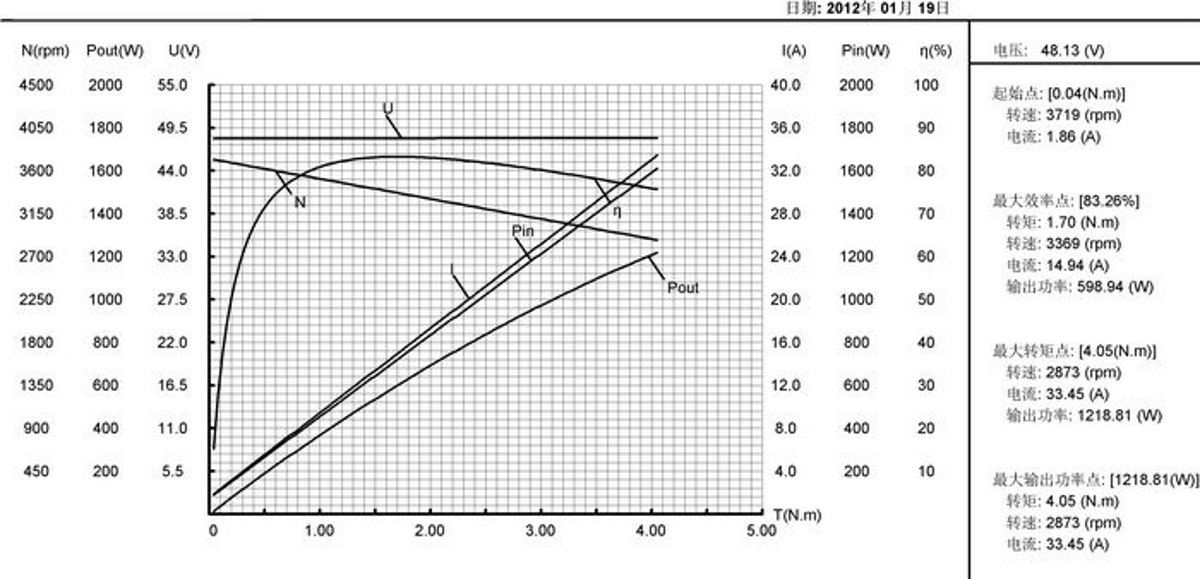

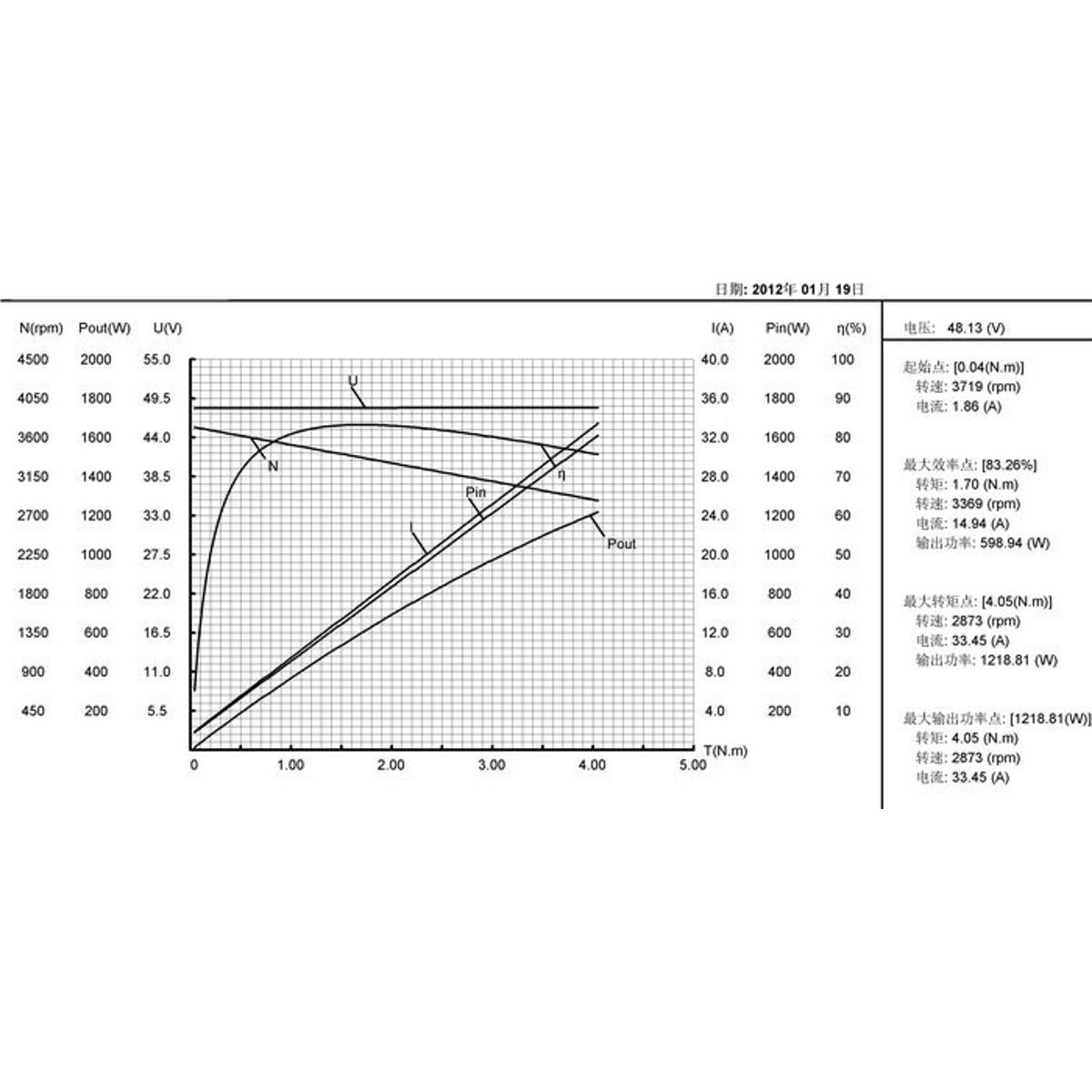

MY1020 48V 1000W MY1020 digram performance chart Dayton MY1020 1000W 3000 RPM 48V DC Motor Dayton MY1020 1000W 3000 RPM 48V DC Motor Dayton MY1020 1000W 3000 RPM 48V DC Motor

Dayton MY1020 1000W 3000 RPM 48V DC Motor




$79.98 (Inc GST)

5.25 kg per item
DAYS10240
In stock
+

Our quantity discounts:

Quantity  5+
Price  $94.60
Dayton MY1020 48V 1000W MOTOR (BRUSHED)

Model: MY1020
Voltage: 48 Volt DC
Output: 1000 Watt

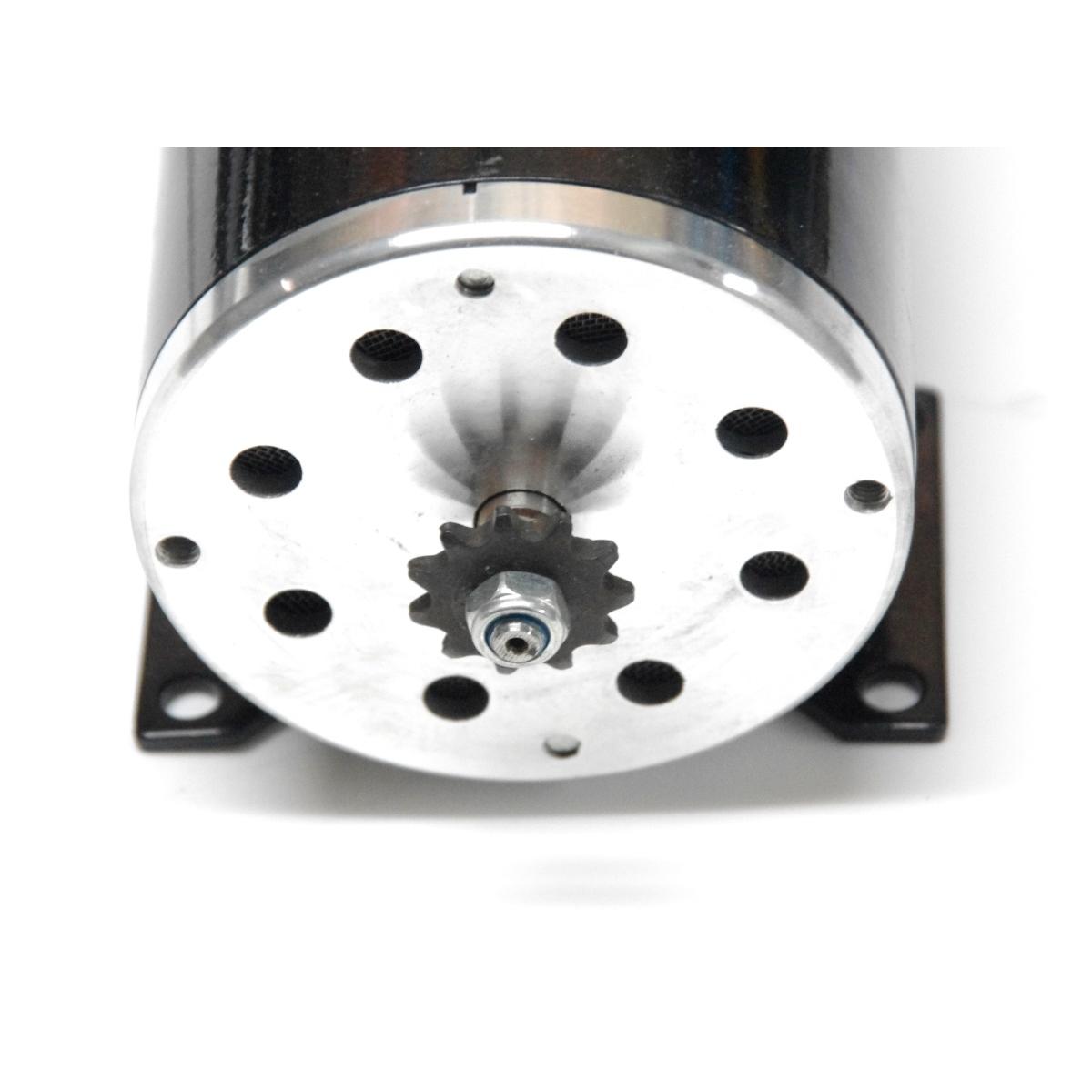

Sprocket: 11T (8mm T8F chain)
Rated speed:3000RPM
Rated current: 26.7A
Rated Torque: 3.2Nm
Sprocket Type: 11t sprocket for T8F Chain (earlier models of this motor may have a smaller sprocket on them as they are usable with a smaller sprocket).

Weight 5.25Kg

1Kw power. Ungeared. Suitable for large scooters or bikes and trikes. You would use these in a setup where you wanted to retain the original gearing. Extremely powerful, one of the largest motors Unite makes in a brushed motor.
These have also proven popular as a pump for either water or hydraulics. For the price, they are an exceptional quality unit.

This model is the second revision of the unit. It weighs less than the original and no longer needs the fan that the original unit had. These are a mass produced unit which is why they are so cheap, though there's nothing cheap about the build quality!

A lot of people ask us for revisions to this motor, ie they want to change the speed or the shaft because it's not quite what their application requires but other parts of it are perfect, especially considering it is so cheap when compared with similar motors.
Generally while it is possible, the quantity would need to be viable for the factory to make the changes while maintaining the low cost.

I know the price looks attractive and I'm sure with a shaft change it would be perfect for your application, but if you only want a few pieces, then don't be surprised when we come back to you with the price for the changes. It'll be there right up there alongside the ones you can get from any other factory (it loses its massive price advantage)

As previously mentioned they are mass produced which is what makes them cheap.





The motor is speed controllable and reversible!
