Replaces SPG Oriental ZD Sumitomo Panasonic

90mm 90 Watt Geared AC Reversible Motor

$159.95 (Includes GST)
Weight: 3.71 kg
In stock

Titan 90mm 90 Watt, 220-240V 50 Hz Reversible Induction Motor (With Damp Brake)




90mm 90 Watt Single Phase 220-240 Volt geared motor

Gearbox Selection Guide:
Select the speed you require in blue, and  match it up to the ratio required.
Alternatively  you can just use power frequency for your country X 30 divided by the speed you require
which gives you the ratio you need.

E.g. I want 272 RPM, and Australia is 50Hz, so it's 50X30/272 =5.5 Ratio. There's no 5.5 ratio, so I
can either select 5:1 (300 RPM) or 6:1 (250 RPM).

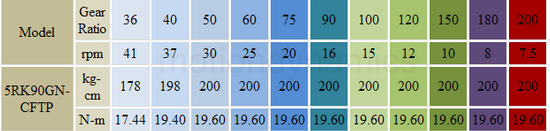

Gear Ratios/Torque (50 HZ)
90mm 90 Watt AC 220-240 Volt asynchronous motor

90mm 90 Watt AC 220-240 Volt motor


90mm 90 Watt Reversible AC 220-240 Volt fractional horsepower motor


Note: GS is the flanged Gearbox model, it is only available as a back order.
