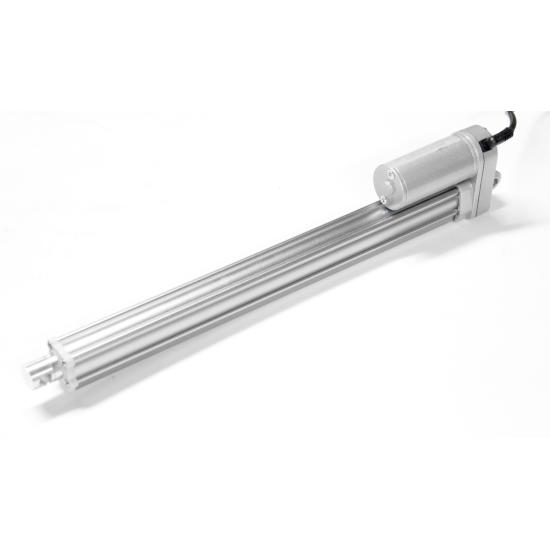

Linear Actuator 30mm/sec 300mm Stroke 300N
Specifications:
Speed: 30mm/Second
Stroke: 300mm
Retracted length: 420mm
Input: 12V Max
Current: 3.0A
Load capacity: 300N at rated load (Push/Pull)
Limit Switches: Internal (Not adjustable)
Protection Class: IP65
Duty Cycle: 10% (1 minutes on/10 Minutes off) at rated load.
Gearing: Steel Cable Length: 80CM
Note: These actuators have a +/- 10% Tolerance.
High quality unit. Very smooth operation. Zinc alloy housing, steel shaft.
Perfect for industrial, Furniture based, and light duty Medical applications. Avalible in a wide variety of strengths and speeds.
One of the best actuators avalible on the Australian market
Reverse the polarity to make it retract.
