NMRV 030 Worm Gearbox with 63B14 Flange (10:1, 25:1, 50:1, 80:1, 100:1) NMRV 030 Worm Gearbox with 63B14 Flange (10:1, 25:1, 50:1, 80:1, 100:1) NMRV 030 Worm Gearbox with 63B14 Flange (10:1, 25:1, 50:1, 80:1, 100:1) NMRV 030 Worm Gearbox with 63B14 Flange (10:1, 25:1, 50:1, 80:1, 100:1) NMRV 030 Worm Gearbox with 63B14 Flange (10:1, 25:1, 50:1, 80:1, 100:1) NMRV 030 Worm Gearbox with 63B14 Flange (10:1, 25:1, 50:1, 80:1, 100:1) NMRV 030 Worm Gearbox with 63B14 Flange (10:1, 25:1, 50:1, 80:1, 100:1) RV-030 Dimensions
NMRV 030 Worm Gearbox with 63B14 Flange (10:1, 25:1, 50:1, 80:1, 100:1)

NMRV 030 Worm Gearbox with 63B14 Flange (10:1, 25:1, 50:1, 80:1, 100:1)

$126.50 (Inc GST)
($126.50 inc tax)
Weight: 1.600 kg
+
Worm Drive Gearbox to Suit Heavy Industrial Motors

Avaliable in 10:1, 25:1, 50:1, 80:1 and 100:1


Fitted with a 63B14 Flange

They say that big things come in small packages, and these reduction gearboxes are absoloutely proof of this! While they may be small, these gearboxes have some BIG power capable of producing high torque (up to 25Nm). These little gearboxes are phenomenal for their size!


These gearboxs have a hollow shaft, and we have both the short (only comes out of one side of the gearbox) or long (comes out of both sides of the gearbox) shaft avaliable!

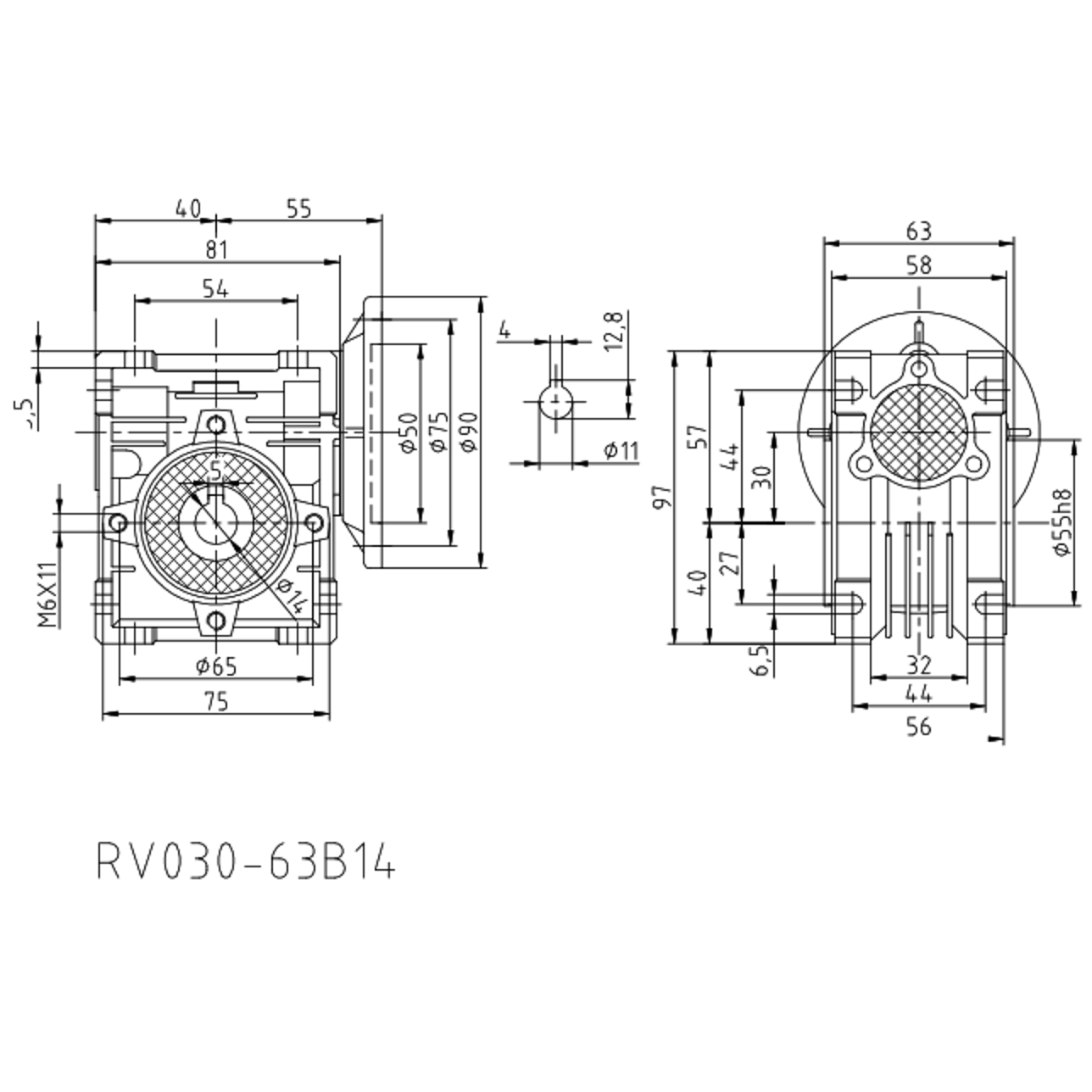

030 CAD Drawing (RV030-63B14.dwg, 80 Kb) [Download]
