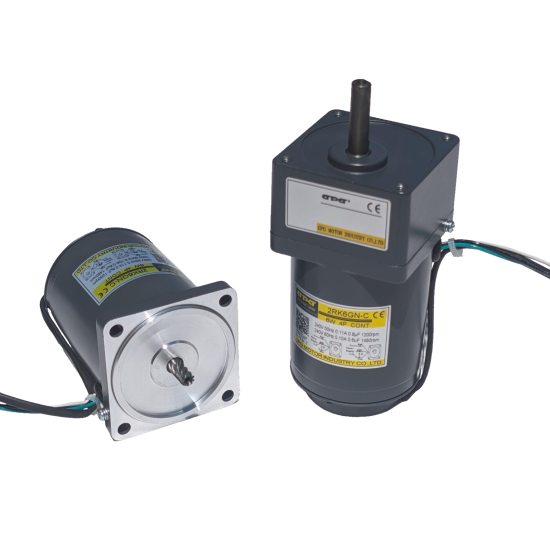

60mm 6 Watt Speed Control Motor
60mm 6 Watt Speed Control Motor 6W Induction Leadwire without Gearhead dimentions 60mm Motor Face with no Gearbox 6W Induction Leadwire with Gearhead dimentions 60mm Gearbox From front with Shaft detail Interdecimal Box Dimentions

60mm 6 Watt Speed Control Motor

List price: $185.45
$181.50 (Includes GST)
You save: $3.95 (2%)
10 days
Weight: 1.1 kg
GPGA11690
In stock
+ −

Products in package

    Product Unit price
AC Speed Control 6W-120W (Analogue)
Qty: 1

AC Speed Control: 6w
$82.68 $78.55
AC Speed Control 6W-120W (Digital)
Qty: 1

AC Speed Control: 6w
$91.77 $87.18
GPG AC/DC 60mm (2GN Gearbox)
Qty: 1

GPG Gearbox (2GN-60mm): 200:1
$71.86 $68.27

6W Geared induction Motor


GPG 6W Geared AC Speed Control Motor available in Single Phase, 220-240V



Please note, All GPG 6Watt-120Watt Speed control motors  have a 90-1350 RPM motor output speed from the speed control module. This is with no gearbox attached.
To work out your gearbox speed, divide the rpm into the ratio you require.

For example, if you get a 200:1 gearbox, at 90 RPM (lowest speed) the output RPM from the gearbox will be 90/200 (90 rpm divided by 200:1 ratio) = 0.45 RPM and at its highest speed would be 1350/200 (1400 RPM divided by 200:1) = 6.75 RPM

Motor Information:

Gearbox Selection Guide:
Use to determine the required torque and RPM

2GN Ratios: 3:1 - 250:1

Motor Length: 89mm

3:1-20:1 Length: 33mm

25:1-250:1 Length: 42mm

To get the total length just add the motor length to the length of the gearbox that youu require.



A Wiring diagram can be found here: https://www.motiondynamics.com.au/support-information.html

Note: Should only be wired by a LICENSED Electrical Installer.
Please note that speeds can vary between 2-20% dependant on motor loading!



DANGER: HIGH VOLTAGES!



Configuration:
Leadwire
