50mm Stroke 10mm/Sec 12V 700N Clevis End

$126.41 (Inc GST)
Weight: 1 kg
In stock

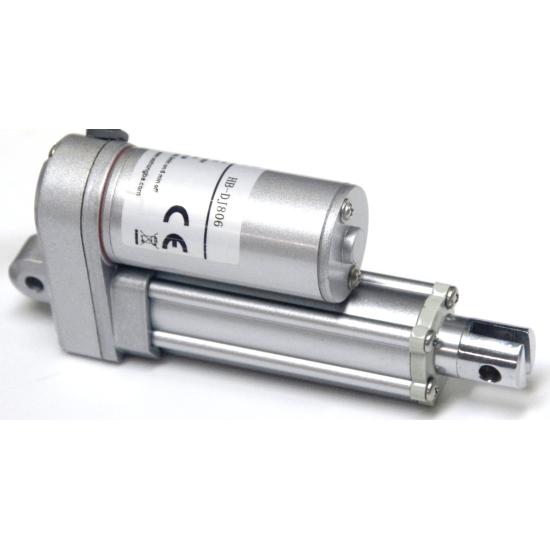

Linear Actuator 50mm stroke 10mm/sec 700N


Stroke: 50mm
Speed: 10mm/Second
Load capacity: 700N at rated load (Push/Pull)
Retracted length: 175mm
Extended length: 225mm
Input: 12V
Max Current: 3.0A
Limit Switches: Internal (Not adjustable)
Protection Class: IP65
Duty Cycle: 10% (1 minutes on/10 Minutes off) at rated load.
Gearing: Steel
Cable Length: 80CM
Note: These actuators have a +/- 10% Tolerance.

High quality unit. Very smooth operation. Alloy frame, steel shaft.
One of the strongest and most durable on the Australian Market.
Uses Include: Furniture, Appliances, Automotive, Satellite, Solar etc

Reverse the polarity to make it retract.
