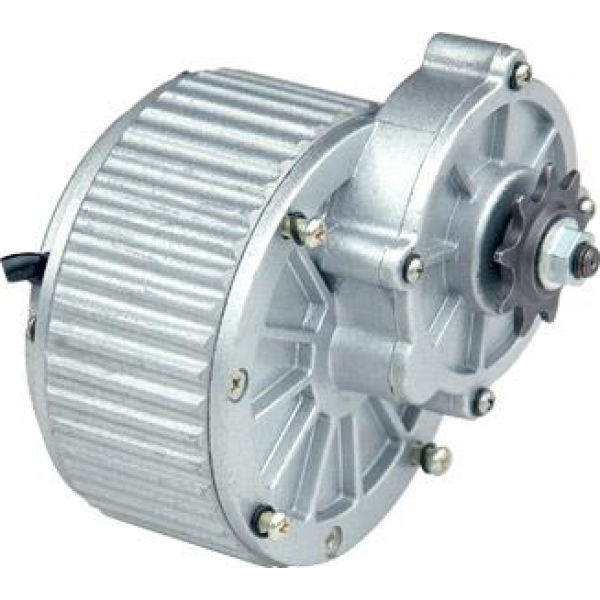

MY1018Z Unite 250W, 24V DC Brushed Gear Motor, 380 RPM

MY1018Z 250w, 24V DC Gear Motor, 380 RPM


$92.95 (Inc GST)

my1018 bike mount
2.25 kg per item
Unite-G250-Alloy-24
+

Description

United 250W, 24V DC Brushed Gear Motor, 380 RPM

High Power - Alloy Body - Can Overdrive for more power

my1018 united motor

These are an extremely fast and powerful motor. The were designed as an electric bike conversion for the people that want to keep the gearing intact (and still use them) on their electric bikes. They are designed to be frame mounted to drive the pedal sprocket.

They are a popular option for those that don't want the expense of brushless motors on their electric bikes or want to keep using the resisting gear clusters. They are a popular choice because they can be over driven, and give a high power output for such a small motor. Popular for use by model railroad and Tank enthusiasts due to their speed and incredible power!

I can't stress this enough! Be careful when you choose a controller for these because if you have the current available and you push the motor it will suck down the current (Over 80A !)

Extremely well priced at $74 Including GST !
As far as we are aware you cannot buy these cheaper from anywhere in Australia! Even the cost of buying one from China is more expensive!

Specifications:

  • 24 Volt, 9A Rated Load, 2.5A No Load
  • 9 tooth sprocket for 1/2'' x 1/8'' pitch bike chain
  • 0.8Nm at the output sprocket @380 RPM
  • 12 gauge power leads
  • Gear Ratio: 79:11 (7.18:1)
  • Weight: 2.2KG (alloy motor and frame!)
  • Reversible, motor can run in either direction simply by swapping the motor leads to the opposite polarity!
  • Alloy case for good heat dispersion.
  • Bicycle style mounting bracket available as an optional extra (Suits the 250w and 450w models)
  • 9 Tooth Sprocket for 1/2" x 1/8" Pitch Chain

Warning !

Please note that these would be illegal to connect to your electric Bike or Scooter as in most states the legal limit is 200W (or in some states 250W with a peddle sensor)
While the maximum legal limit is 200w, you could voltage or current limit this to bring it down to the legal power requirements.
And remember, If you overdrive this motor, under heavy loads it CAN pull HUGE CURRENT on a 24V supply!

my1018 unite motor 450w

Also, you can see the optional mounting bracket here!
This is a frame mount bracket made to be mounted close to the wheel.

my1018 mounting bracket
